Challenge Coin Manufacturing: Die Struck, 3D Relief and Edge Options
Challenge coins have a rich tradition in the military, clubs, and branded organizations. The unique touch of each coin comes from careful manufacturing choices. By exploring die struck methods, creative 3D relief, and distinctive edge designs, buyers unlock countless possibilities for their custom coin project. Understanding these techniques ensures the final product matches purpose, prestige, and durability.
The Challenge Coin Process: From Concept to Completion
Every custom challenge coin begins as an idea—a memorable token, a mark of achievement, or branded recognition. Translating that idea into a finished coin involves thoughtful decisions at each step. Experienced manufacturers like Gairun use a streamlined process that balances art and engineering for top-tier results.
Design & Artwork Preparation
First, a coin’s design takes shape. Skilled graphic artists create digital proofs, considering features like raised versus recessed elements or dual plating. The artwork accounts for 2D or 3D effects, text placement, and edge specifications. Gairun offers OEM and ODM services, helping clients realize complex visions with manufacturing precision.

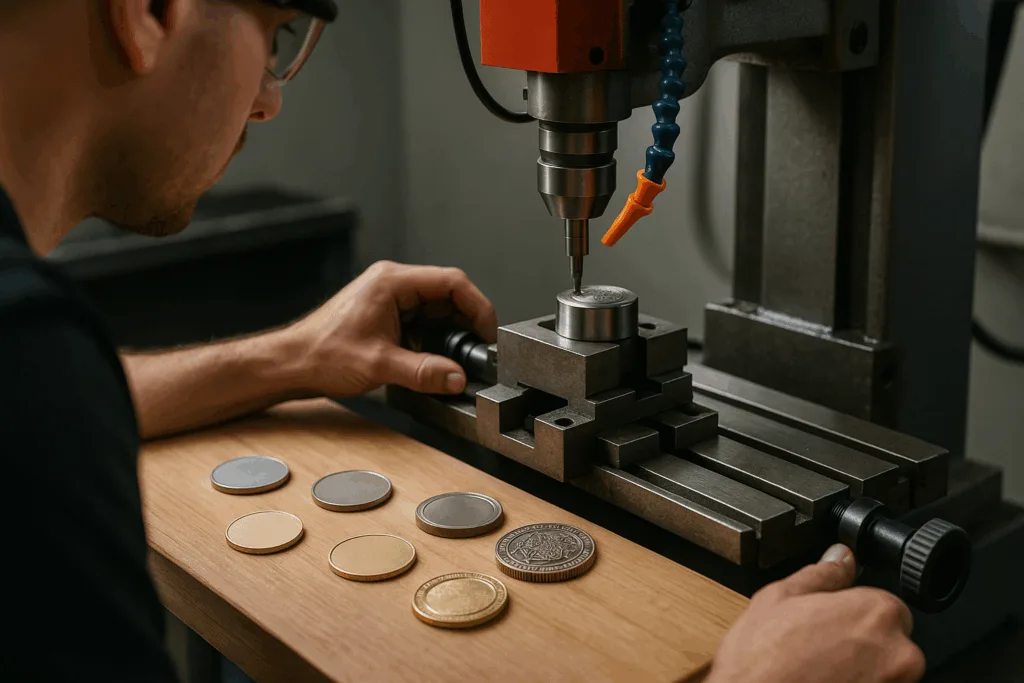

Die Development: Creating the Coin Mold
Next, craftspeople prepare a die—a hardened steel mold that stamps the coin’s surface. CNC milling, wire EDM (electrical discharge machining), or laser engraving ensure fine detail and crisp lines. High-tolerance dies guarantee faithful artwork reproduction. Typical die lifespan exceeds 10,000 impressions, minimizing long-term costs for bulk orders.
Material Selection
- Zinc alloy: Affordable, versatile, ideal for 3D relief and intricate shapes.
- Brass: Premium feel, sharp detailing, suitable for high-end or official coins.
- Iron/Steel: Robust, cost-effective, usually selected for simpler designs.
- Stainless steel (304/316): Resistant to corrosion, perfect for outdoor or marine environments.
- Aluminum (6061/5052): Lightweight, often chosen for large diameter coins.
Material thickness usually ranges from 2mm to 4mm for challenge coins, balancing heft with handling comfort.
Die Striking & Surface Creation
Die striking involves pressing a blank piece of metal into the custom die with tons of force. The process imprints all artwork details, from emblem contours to fine text. Tighter dies, especially for brass, achieve sharp boundaries and intricate fonts. For 3D relief, molds use variable height profiles, adding lifelike depth and shadow play. Skilled technicians monitor pressure and die temperature to prevent warping and ensure repeatable quality.
3D Relief & Dual Plating: Crafting Visual Impact
Modern coin manufacturing techniques have expanded what’s possible with relief work and color finishes. Buyers choose between 2D and 3D profiles, each lending a unique feel.
2D vs. 3D Relief
| Relief Type | Features | Finish | Best Use Scenarios |
|---|---|---|---|
| 2D Relief | Flat layers, sharp separation, clear text | Suitable for painted/enamel coloring | Logos, simple crests, precise lettering |
| 3D Relief | Curved, contoured surfaces, natural shading | Emphasizes metal finish, dual plating possible | Portraits, landscapes, sculpted emblems |
Choosing 3D relief introduces more realism—faces, animals, and objects appear almost sculpted. This effect requires advanced mold creation, plus careful casting and polish. The option can elevate military command coins, club tokens, or premium branded gifts.
Dual Plating & Advanced Surface Treatments
Plating refers to the thin metal layer applied atop the base coin. Gairun offers gold, nickel, antique brass, matte black, gunmetal, and more. Dual plating allows two finishes on a single coin—for example, a shiny silver border with an antique gold emblem. Each layer is applied sequentially with masking, ensuring clean separation. Dual plating adds depth, visual contrast, and perceived luxury.
- Electroplating thickness ranges: 3–10μm (micrometers), measured by XRF to ensure uniformity
- Compliance: ASTM B117 tests resistance to salt spray—crucial for coins worn or displayed in humid climates
- PVD and powder coatings add scratch resistance, especially for field usage or souvenirs subject to daily handling
Enamel (soft or hard) amplifies certain design areas. Hard enamel, once cured and polished level with the metal, yields a smooth, glossy, and durable surface—a favorite for branded coins. Soft enamel leaves fine color depressions, giving tactile feedback and a classic feel.
Coin Edge Design: Making Details Stand Out
Edge patterns enhance both grip and appearance. Distinct edges can also frame the coin design, turning a simple token into executive memorabilia.
Popular Edge Styles
- Reeded Edge: Fine grooves running vertically, similar to a classic currency coin. Adds texture and tradition.
- Rope Edge: Twisted motif, often used for nautical or marine clubs. Symbolizes strength and unity.
- Diamond-Cut Edge: Faceted segments that catch light from every angle, increasing sparkle.
- Flat Edge: Unadorned, modern look—sometimes engraved with numbers, codes, or brand marks.
- Custom Pattern: Laser-engraved shapes, symbols, or club insignia for extra personalization.
The edge is created after die striking, using CNC routers, milling, or specialized hand tools. Edge patterns also influence perceived coin value and collector appeal.
Technical Details and Tolerances
Manufacturers like Gairun control tolerances tightly, keeping edge width and pattern depth within ±0.2mm. Smoothness is evaluated by touch and visual checks; ornate styles get extra hand finishing. Antiques or premium coins might combine edge effects with selective plating—dual tones for border and face, for example.
Color Filling, Surface Finishing, and Branding Options
Color brings challenge coins to life, highlighting logos, flags, or commemorative artwork. Enamel fills use exact Pantone matches, with fill depths controlled to within 0.05mm for uniform appearance. Epoxy domes may be added for extra gloss and protection on soft enamel coins.
Finishing Techniques
- Brushed/Satin Finish: Subtle texture; reduces fingerprints, offers refined look.
- Mirror Polish: Ultra-reflective surface, perfect for awards or command-level coins.
- Sandblasted: Matte base with raised highlights, accentuates relief and detail.
- Antique Treatment: Chemical patina, aging the surface for historic appeal.
Any finish chosen affects not just appearance, but longevity and ease of cleaning.
Branding, Serial Numbers, and Security Features
Organizations often request engraved serial numbers, RFID chips for authenticity, or laser-marked security tags. These are added post-plating via fiber laser or dot peen machine. Clubs and militaries may combine multiple ID marks on the reverse side for tracking or ceremonial presentation.

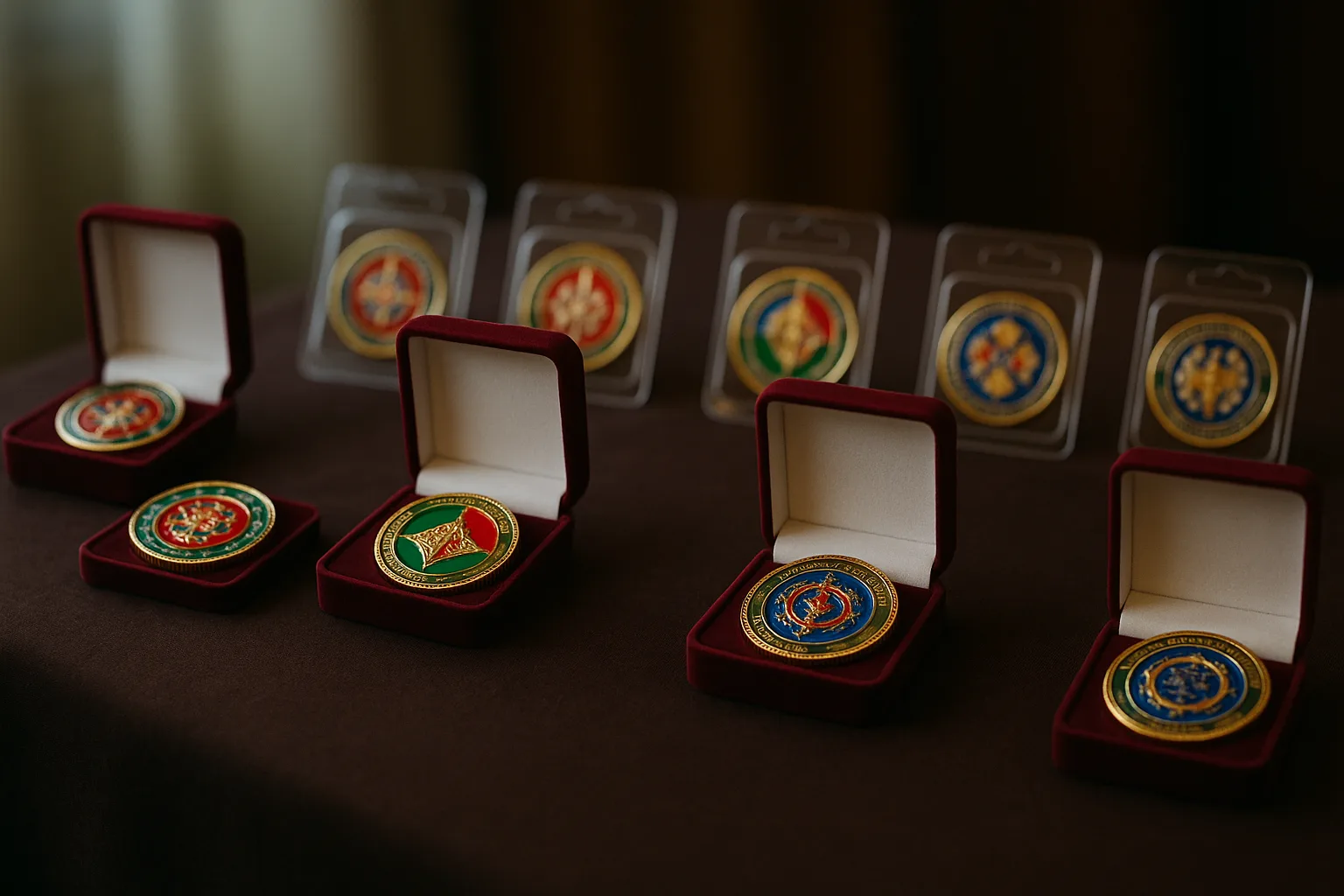

Assembly & Packaging: Ready for Presentation
Once the main coin is complete, assembly begins. Options include magnetic mounts, adhesive backing (like 3M VHB for badges), and split rings for keychain coins. Most challenge coins ship in clear OPP bags or velvet boxes; premium versions may use blister packaging or branded cards for gifting.
Quality Control and Regulatory Compliance
- Plating adhesion tested to ASTM D3359 standards
- Random sampling based on AQL (Acceptable Quality Level) using ANSI/ASQ Z1.4
- Materials meet REACH/RoHS for eco compliance
- Wearable coins tested for nickel release, per EN 1811
- USA coins comply with CPSIA/Prop 65 for children’s items
Each batch undergoes hardness, color difference (∆E), and salt spray checks to ensure long-term durability.
Applications & Business Outcomes: Selecting the Right Options
The techniques described above ensure the finished challenge coin truly fits its context. Military units use 3D relief and dual plating for command coins. Clubs may prefer rope edges and bright enamel to showcase unity. Brands opt for color separation and edge engraving, supporting their identity at promotional events or product launches.
- Durability: Stainless and brass coins suited for field use, soft enamel and powder coating for everyday handling.
- Aesthetics: Dual plating and ornate edges drive perceived value and collectability.
- Cost: Zinc alloy and flat edge reduce price, while custom edge and 3D effects add premium.
- Lead Times: Die struck coins typically ship within 18–25 days after artwork approval.
- MOQ (Minimum Order Quantity): Bulk orders (300+) yield economies; short runs available for VIP gifts.
- Branding: Serial numbers, club insignia, or security marks boost authenticity and gifting appeal.
Gairun, known for metal craftsmanship, precision, and reliable B2B service, assists militaries, clubs, and brands in picking the right coin features before starting production.
Challenge Coin Manufacturing: Die Struck, 3D Relief and Edge Options
Every detail—from metal choice and relief style to color and edge patterns—defines the final impact of a challenge coin. Buyers planning a project should map out preferred finishes, surface effects, and packaging options early on. This ensures the inquiry yields an accurate quotation and the result matches organizational needs. Gairun’s technical support makes complex choices simple, offering samples and proofing for peace of mind.
Expert Tips: Making Your Custom Challenge Coin Stand Out
“Well-designed coins generate conversation and pride. Matching relief, plating, and edge style to your story delivers lasting value.” – Production Lead, Gairun
- Request samples with different relief and plating for side-by-side review
- Balance edge drama with overall design—don’t let ornate borders overpower your logo
- Consider QR codes, security chips, or numbering for club or event coins
- Use packaging that showcases the coin and protects the finish during transit
Frequently Asked Questions
What is the challenge coin process from start to finish?
The process includes design creation, die development, material selection, die striking, plating, edge finishing, color filling, assembly, and packaging. Each step shapes the coin’s appearance and durability.
How does 3D relief differ from 2D on custom coins?
3D relief uses contoured surfaces for lifelike effects, while 2D relief accents flat layers and sharp boundaries. 3D coins suit detailed artwork like portraits or complex emblems.
What edge designs are available for challenge coins?
Common choices include reeded, rope, diamond-cut, flat, and custom patterns. Each edge style changes the coin’s grip, profile, and visual impact.
What plating finishes can be applied to custom coins?
Options include gold, nickel, antique brass, black, and gunmetal, plus dual plating for two-tone effects. Plating depth and uniformity affect scratch resistance and color brightness.
How do manufacturers control coin quality and compliance?
Quality checks include plating adhesion, salt spray resistance, hardness, and color uniformity. Compliance follows international standards for safety, environmental impact, and wearability.
What packaging options are available for presentation coins?
Most coins ship in OPP bags or velvet boxes. Premium coins can be packaged in blister cards, branded displays, or custom mounts for gifting and display.
